LTU8000 Trimmer Mount Advanced Leak Detector

For “Uniloy” and other indexed-conveyor deflash trimmers.

• LTU8000 Datasheet
• LTU8000 Manual (hardwired into trimmer)
• LTU8000H Manual (version with cable plug)

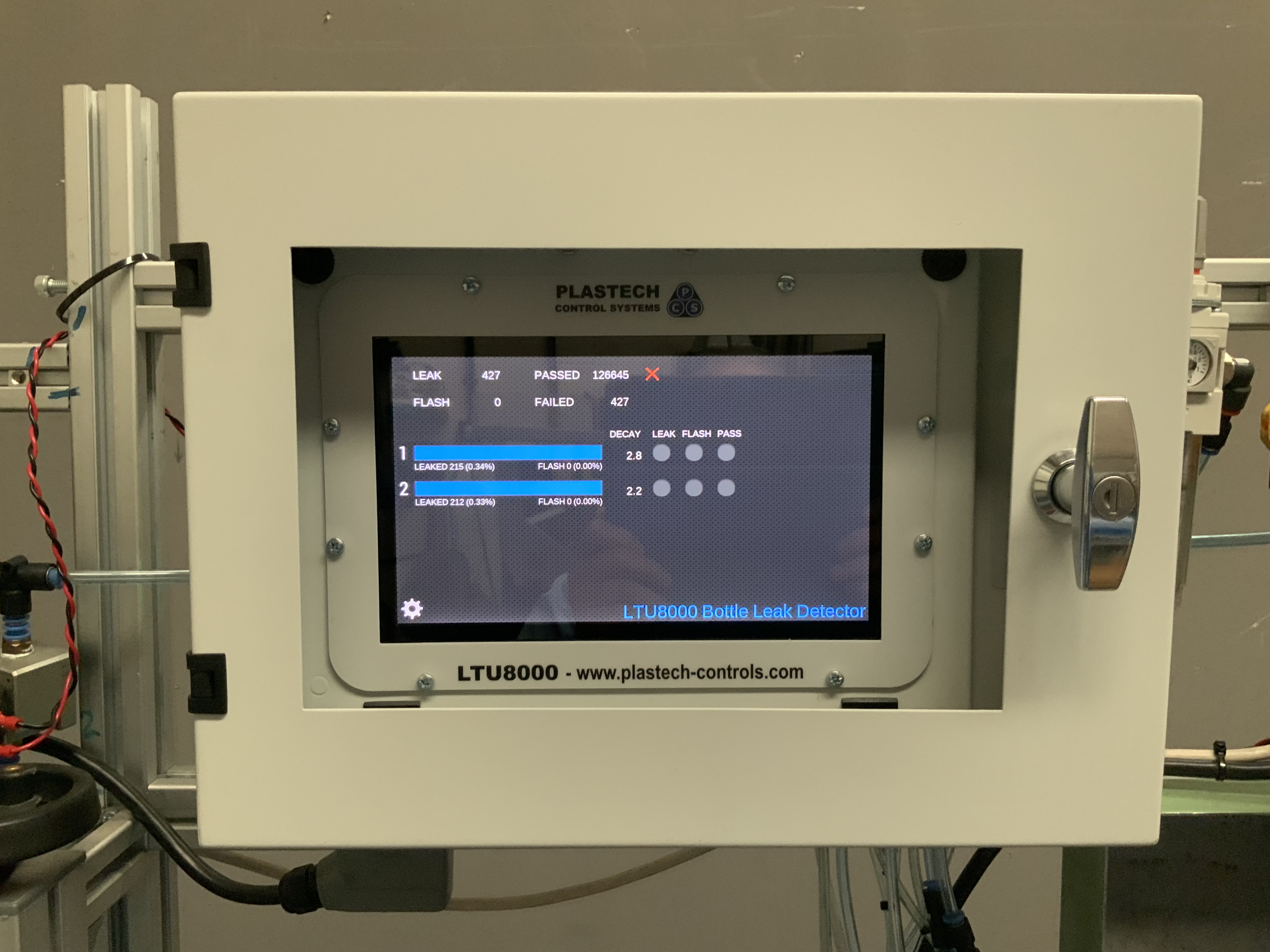

LTU8000 Control Cabinet with 10" touchscreen

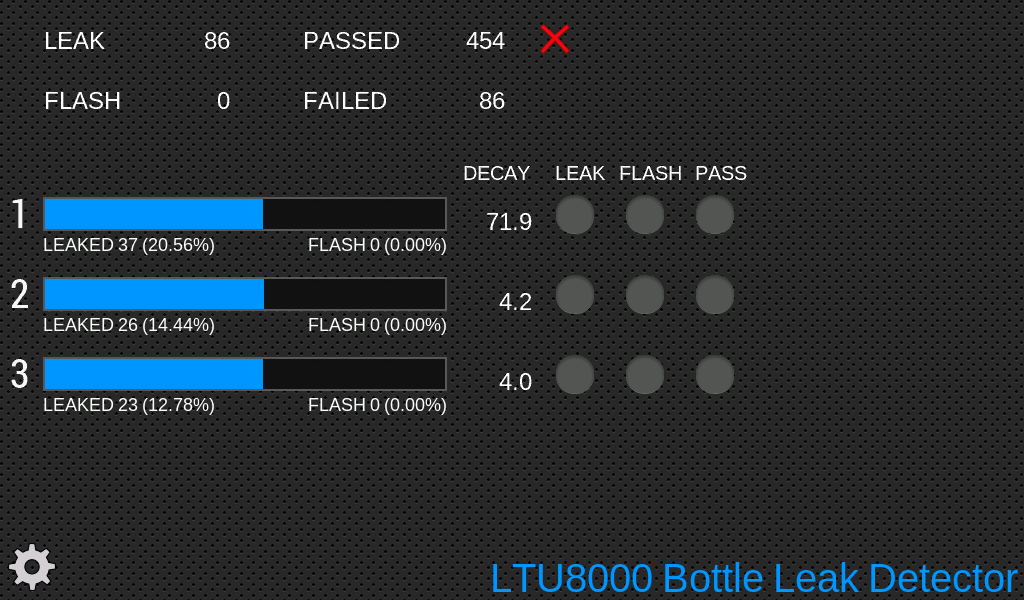

Main Display screen

Now Available

The LTU8000 is the latest leak detector for “Uniloy” (flat-bed) and other indexed-conveyor deflash trimmers. It is an evolution of the LTU6000, which has become a de-facto industry standard fitted to new machines by the manufacturer. The LTU8000 updates the control panel with a new 10" color touchscreen and all-new electronics.

The connectors and voltages are compatible with the LT2, LTU2000 and LTU6000, so an existing installation can be upgraded simply by exchanging the front panel assembly. The panel assembly is also available on its own as a retrofit package, and the complete leak detector is available as a package for machines in the field — allowing consistent, high performance leak testing where existing solutions are aging, unreliable or inaccurate. Customers experience dramatic production efficiency improvements after upgrading, due to the elimination of incorrect bottle rejection and machine down-time.

The LTU8000 is the 24V DC version, for DC trimmer control systems. The closely related LTU4000 is the 110V AC version for AC trimmers — otherwise the two are identical.

• High Quality 10" color touchscreen
• Dual 24 bit Analog to Digital converters with high speed sampling for ultimate pressure sensing accuracy and resolution
• Plug-in pressure transducers, allow easy field replacement or upgrade
• USB device interface for easy firmware updates from a PC, plus USB flash drive socket, Ethernet and WiFi
• DC and AC machine interface supported directly by the main board
• Available for 1, 2, 3 or 4 test channels on the same circuit board

High Quality 10" Color Touch Screen

• Quick and easy display of settings, results, counts, diagnostic and installation configuration
• Multinational language displays available
• Bargraph display of pressure, with indication of test results for each channel

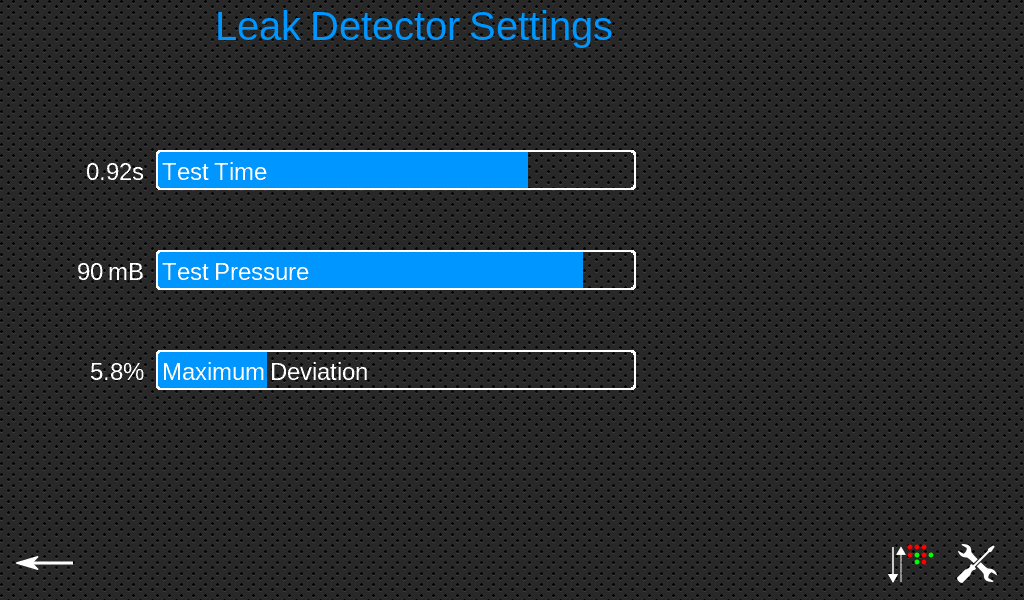

Settings Screen

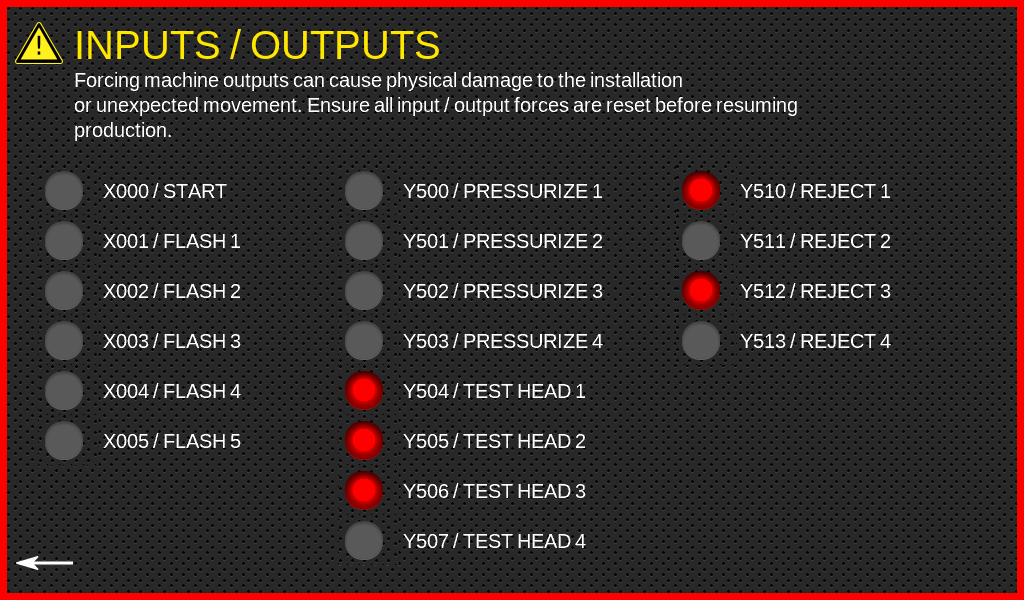

Machine Diagnostics

Pressure Transducers

• Calibrated, temperature compensated pressure transducers. Pluggable for easy field replacement or upgrade.
• Dual 24 bit analog to digital converters with high speed sampling of pressure.
• Digital signal processing of pressure signals.

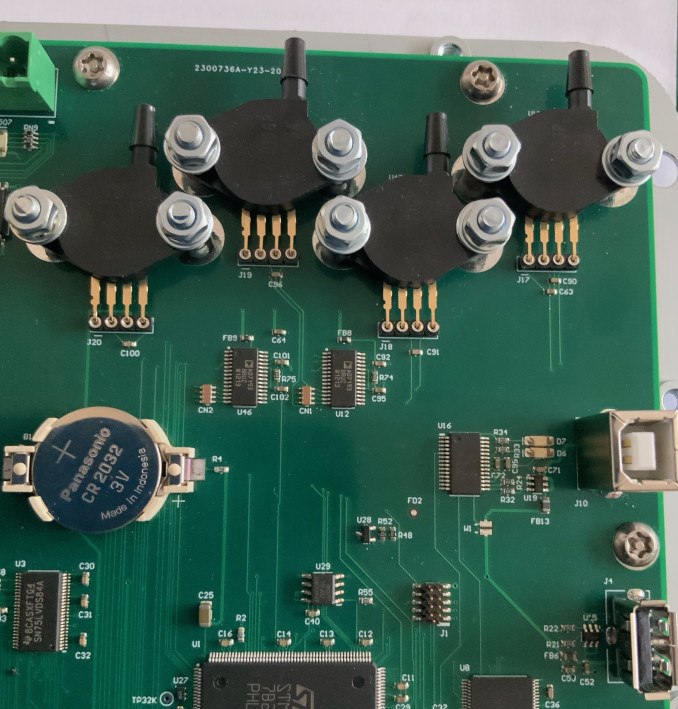

Plug-in pressure transducers — 1 to 4 channels on one board

CPU & Connectivity

• USB device interface for easy field updates of software from a PC.
• USB flash drive socket, Ethernet and WiFi.

Machine Interface

• Fault-protected solid state relay outputs for reject signalling / blow-off valves.
• DC and AC machine interface supported directly by the main board — the LTU8000 is the DC version, the LTU4000 the AC version.
• Connectors and voltages compatible with LT2, LTU2000 and LTU6000. Upgrades by simply exchanging the front panel assembly.

Improved Production Efficiency

• Eliminates incorrect bottle rejection without compromising test accuracy.
• Individual counts per test head identify setup problems early, reducing product wastage.

Reliability

• Interference immunity.
• 50 million cycle rated valves.
• Self-diagnostics and self-setting capability.
• Short-circuit proof outputs capable of directly driving trimmer bottle blow-off valve coils.

Accuracy

• High resolution A/D converter.
• High flow rate pneumatics to quickly achieve bottle pressurization.
• Optimised for short cycle time leak tests.
• Self-tuning algorithms continuously optimise pressurization and threshold settings.
• Adjustable test pressure.

Safety

• No behind-panel access required for machine setting.
• 24V DC versions available.
• Panel-mounted pneumatic controls.

Simple Installation and Maintenance

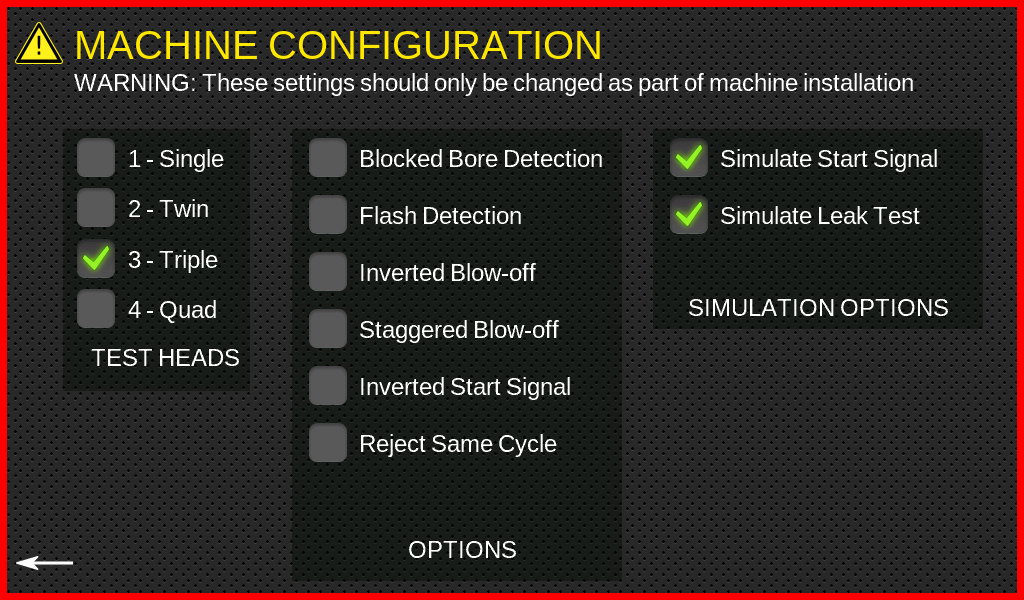

Installation Configuration Screen

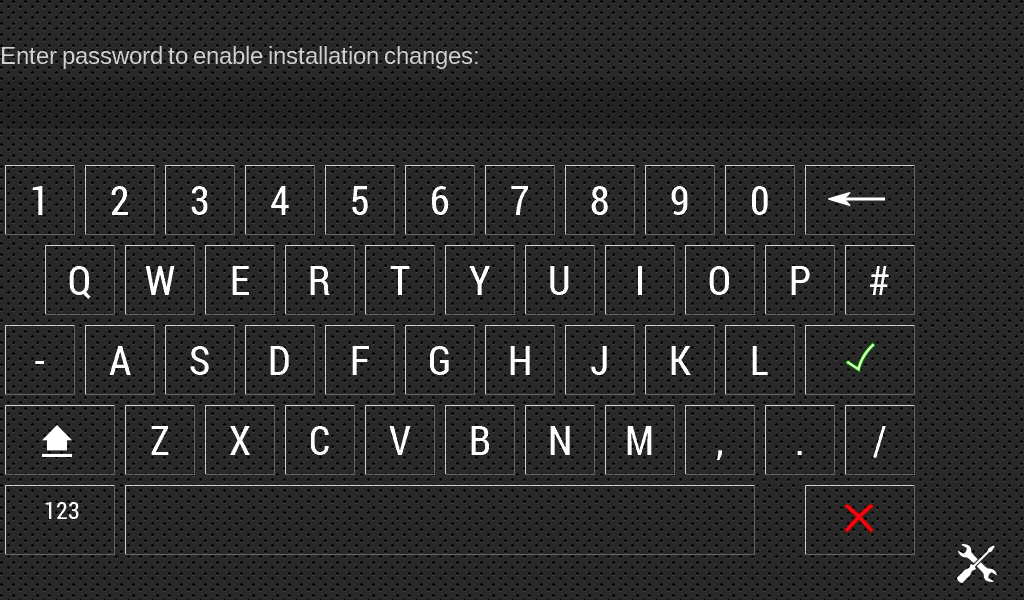

Password protected settings

• Simplified machine connection and internal wiring (all electrical functions integrated onto a single PCB).
• Low operating power reduces load on the system supply.
• 110VAC (LTU4000) or 24VDC (LTU8000) models.
• Valves can be changed without removing pipes — all access from the front of the control enclosure.
• Manual override buttons on all valves.
• Uniform design and same PCB for 1, 2, 3 and 4 channel versions.
• Specially designed one-piece aluminium manifold to eliminate internal leakages.
• LED state indication on valves.

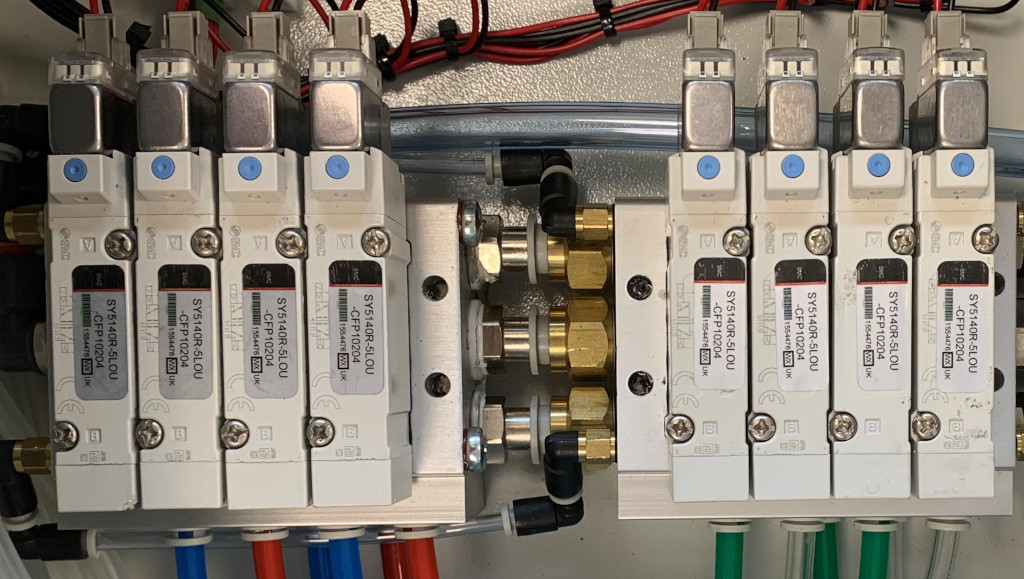

Solid aluminium manifold with 50 million cycle valves

Configurable Options

• Flash Detection
• Blow-off Chute Backup Detection
• Inverted Reject
• Data Logging / SPC

Specification

Ordering Information

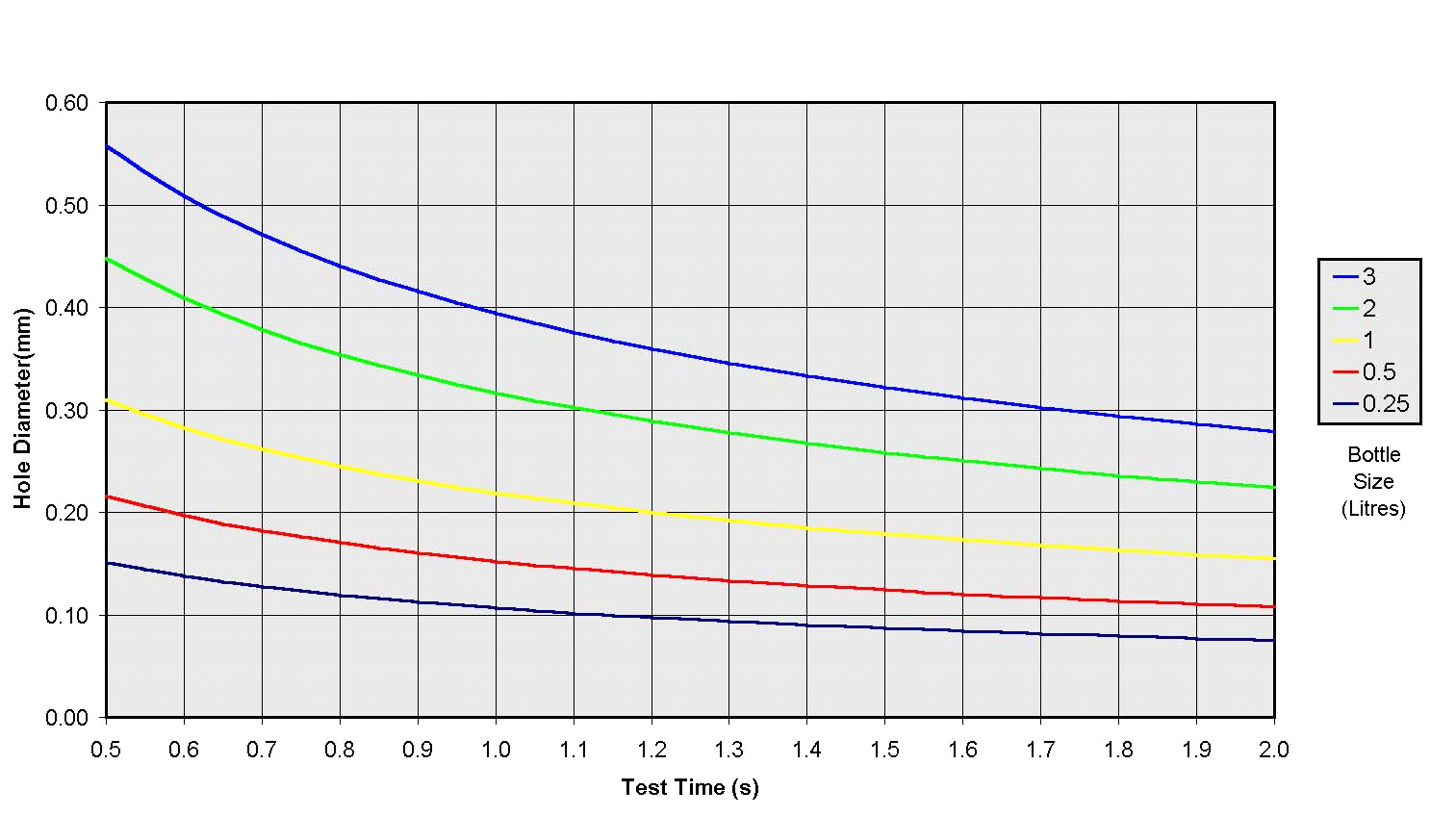

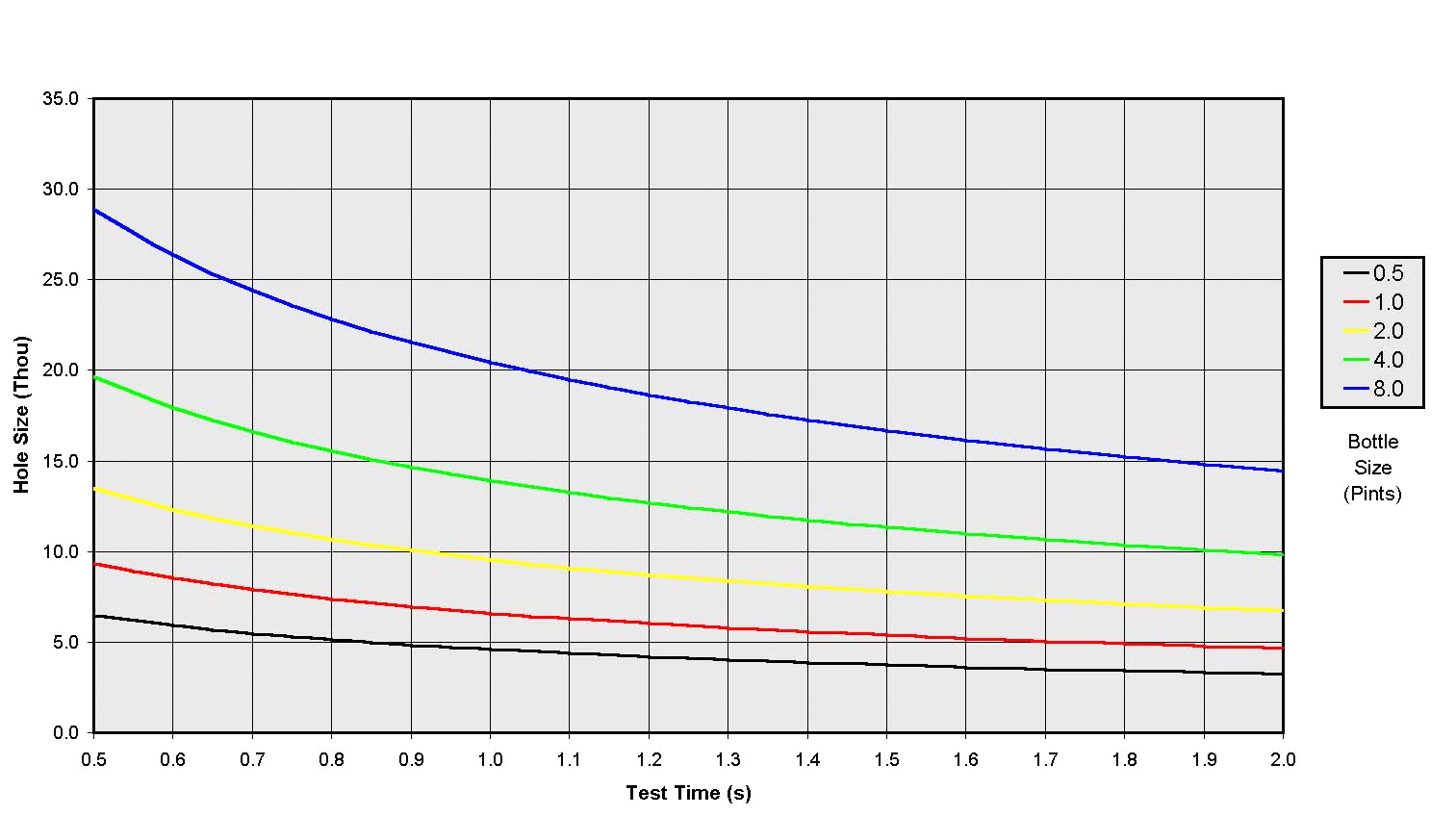

Performance Graphs

These graphs show the hole size detectable for various bottle sizes and test times.
